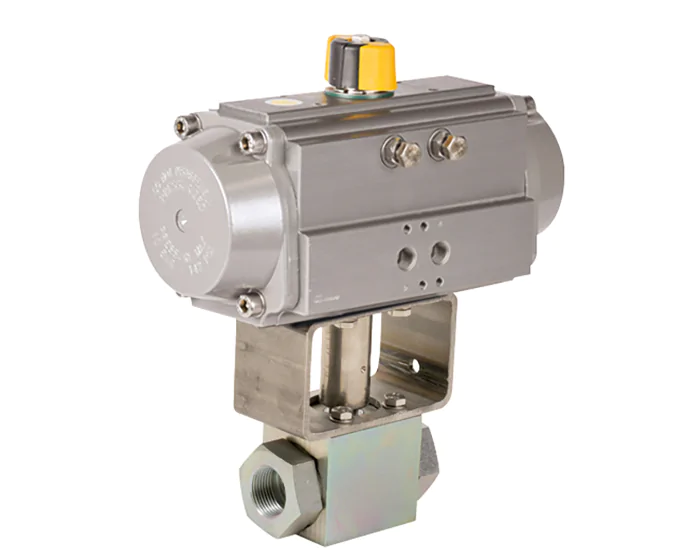

The 799 ZA series 1 piece ball valve has a chrome-plated carbon steel body, chrome-plated steel ball, POM seats. Full bore. High pressure. PS : 315 to 500 bar - TS : -20 / +100°C. ALPHAIR pneumatic actuation. BSP threaded connections.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 100 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Carbon steel 1.0715 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 83.0 |
| Body material | Carbon steel S250 |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 500 |
| Connections | BSP FF |
| Seats | POM |
| Surface temperature | TX |
| TS max (°C) | 100 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Hydraulics |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel S250 Full Double acting DN10 - 3/8'' | 273201017007R | S1000056 |
€257.43
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full Spring return DN10 - 3/8'' | 273201017108R | S1000057 |
€336.27
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN15 - 1/2'' Double acting | 273202017007R | S1000058 |
€261.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN15 - 1/2'' Spring return | 273202017109R | S1000059 |
€388.84
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN20 - 3/4'' Double acting | 273203017008R | S1000060 |
€334.89
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN20 - 3/4'' Spring return | 273203017110R | S1000061 |
€509.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN25 - 1'' Double acting | 273204017008R | S1000062 |
€367.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Full DN25 - 1'' Spring return | 273204017110R | S1000063 |
€527.33
(excl. btw)
|
add to cart |
